2 Ton 3PH 460/230v Hoist + Trolley
Starting at
Regular price
$6,720.40
Customer Reviews

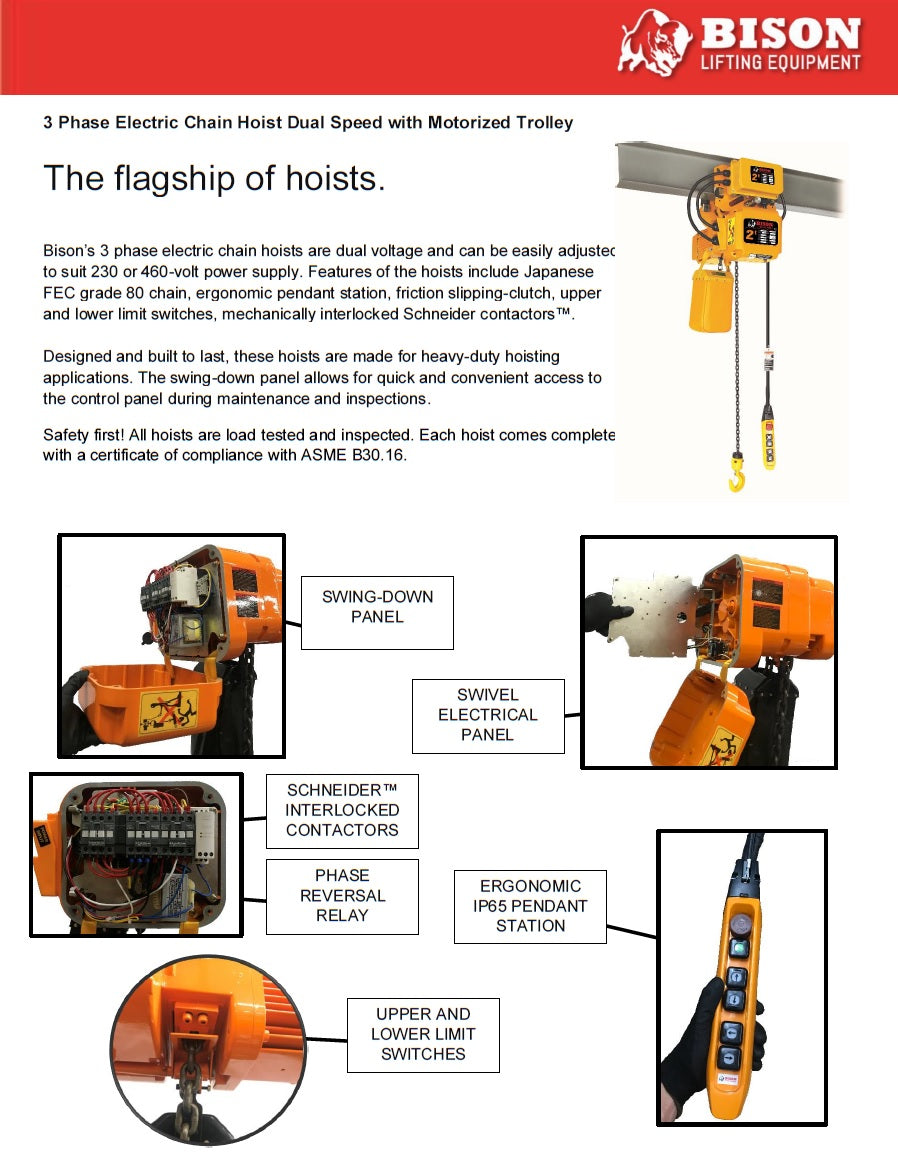

Bison's dual-speed hoists are great for lifting applications where low speeds are required for greater precision and control with the benefit of a high speed for productivity. They include a lightweight aluminum body with a fan-cooled motor, standard thermal motor protection, friction-clutch, limit switches and a safety brake. Bison hoists feature Schneider Electric™ contactors.
| Specifications | ||||||||||||
| Code | Size | Standard Lift Height | Push Button Cord | Head Room | Lifting Speed | Motor Output | Trolley Speed | Trolley Output | Load Chain Size | Chain Fall Lines | Hoist + Trolley Weight | Shipping Weight |
| HHBD02SK-01D + WPC02D | 2 Ton | 20 Ft | 17 Ft | 22.05 inches | 20/7 ft/min | 2 Hp | 66/23 ft/min | 1 Hp | 10 mm | 1 | 322 lbs | 363 lbs |
- Complies with ASME B30.16
- H4 rated motor
- Dual Voltage 460v/230v (comes prewired for 460v)
- Control Voltage: 48v
- IP65 Ergonomic pendant controller
- Easy maintenance control panel
- Chain Bag included on all standard models.
CONTACT US FOR A QUOTE ON CUSTOM LENGTHS
